Revving Up Efficiency: How a Static Frequency Converter Can Optimize Your Power Systems
A Static Frequency Converter is a device that converts the frequency of an electrical power source to match the frequency required by the load.
Static Frequency Converter: A Versatile Solution to Your Power NeedsAre you tired of relying on traditional transformers and generators to convert power from different frequencies? Are you looking for a more efficient, reliable, and cost-effective solution? Look no further than a static frequency converter.A static frequency converter is an electronic device that converts power from one frequency to another without any moving parts. It's the perfect solution for industries and businesses that require consistent and stable power supply for their operations, such as aviation, marine, data centers, and manufacturing.But what makes static frequency converters so special? For starters, they have a much higher efficiency rate compared to traditional transformers and generators. They also have a smaller footprint, which means you can save valuable space in your facility.Moreover, a static frequency converter provides clean power that's free from any fluctuations, harmonics, or distortions. This keeps your equipment and machinery from experiencing any unexpected downtime due to power surges or overloading.Unlike conventional transformers and generators, static frequency converters have a faster response time, which means they can quickly adapt to any changes in voltage or frequency. This ensures that your operations run smoothly and uninterrupted, even during peak demand periods.Another advantage of static frequency converters is their versatility. They can be customized to fit any specific power requirements, from low to high power output, single-phase to three-phase, and any frequency range.One of the most significant benefits of static frequency converters is their cost-effectiveness. Unlike traditional transformers and generators, these devices require minimal maintenance and have a longer lifespan, which translates into lower operating costs and higher savings in the long run.When it comes to installation, static frequency converters are easy to install and require minimal downtime for your operations. They also come with advanced control systems and monitoring capabilities, allowing you to monitor and control power output and performance remotely.In summary, static frequency converters are a versatile, efficient, and cost-effective solution for industries and businesses that require stable and consistent power supply for their operations. It's time to upgrade your power system and embrace the future of power conversion technology.If you're interested in learning more about static frequency converters and how they can benefit your business, contact us today for a consultation. Our team of experts will be happy to answer any questions you may have and provide you with customized solutions that meet your specific needs. Don't wait – make the switch to static frequency converters today and experience the difference for yourself!The Importance of Static Frequency Converters
If you are in the market for a frequency converter, you are probably wondering which one is best suited for your needs. There are a variety of different types of converters available on the market, but one of the most popular is the static frequency converter.
A static frequency converter is an electronic device that is used to convert one frequency of electrical power into another. This is useful for a variety of reasons. For example, if you have equipment that operates at a different frequency than the power source, a static frequency converter can help bridge that gap.
What Are the Advantages of a Static Frequency Converter?
When compared to other types of frequency converters, a static frequency converter has a variety of advantages. One of the biggest advantages is its efficiency. Because it uses solid state technology, a static frequency converter does not require any moving parts. As a result, it does not experience any friction or wear and tear, which means that it requires less maintenance over time.
In addition, static frequency converters are more effective at maintaining a stable output voltage than other types of frequency converters. This is important for many applications, such as industrial processes or medical equipment, where a stable voltage is essential for safety reasons.
What Applications are Best Suited for Static Frequency Converters?
Static frequency converters are used in a wide variety of applications. Some of the most common applications include:
- Industrial Machinery: Static frequency converters can be used to power industrial machinery that operates at different frequencies than the power source.
- Aerospace: Static frequency converters are often used in aerospace applications, such as powering aircraft avionics systems or instrument landing systems.
- Hospitals: In hospitals, static frequency converters can be used to ensure that medical equipment operates at the correct frequency, which is important for patient safety.
- Marine Applications: Static frequency converters can be used in marine applications to power equipment that operates at a different frequency than the main power supply on board ship.
What Factors Should You Consider When Choosing a Static Frequency Converter?
If you are in the market for a static frequency converter, there are several factors that you should consider before making a purchase. These include:
- Power Rating: You will need to determine the power rating of your equipment to choose a static frequency converter that can handle the load.
- Input and Output Frequencies: Make sure that the static frequency converter you choose is capable of converting the input frequency to the output frequency that your equipment requires.
- Efficiency: Look for a static frequency converter that is highly efficient, as this can help save you money on energy costs over time.
- Reliability: Choose a static frequency converter from a reputable manufacturer with a track record of producing high-quality products.
Conclusion
A static frequency converter is an important piece of equipment for many industries and applications. When choosing a static frequency converter, it is important to consider factors such as power rating, input and output frequencies, efficiency, and reliability. By choosing a high-quality static frequency converter that is best suited for your needs, you can help ensure that your equipment operates safely and efficiently for years to come.
Comparison between Static Frequency Converters
Introduction
Static frequency converters are mainly used to convert AC power frequency from one level to another. They are commonly used in industries, high-speed locomotives, and aviation due to the varying electrical systems. In this article, we will compare and contrast different types of static frequency converters used in various areas.Voltage Source Converter (VSC)
VSC is a type of static frequency converter that converts fixed AC voltage to a variable AC voltage. The conversion process is achieved through changing the duration of each pulse. The voltage source converter offers good dynamic performance with low harmonic distortion, making it favorable for renewable energy systems.VSC Advantages
- Low harmonic distortion
- Good dynamic performance
- Favorable for renewable energy systems
VSC Disadvantages
- Complex control structures
- Requires additional components, making it bulky and expensive
- Only suitable for low power applications
Current Source Converter (CSC)
CSC is a static frequency converter that converts fixed AC current to a variable AC current. The conversion process is achieved by pulsating DC which is then converted to AC through a resonant LC circuit. The current source converter offers a high power factor with low THD.CSC Advantages
- High power factor
- Low THD
- More reliable and robust
CSC Disadvantages
- Heavy and bulky
- Suitable for high power applications only
- Less efficient compared to other static frequency converters
Pulse Width Modulation (PWM)
PWM is a type of static frequency converter that varies the duty cycle of the input signal, which in turn changes the frequency of the output signal. The PWM technique offers high efficiency and low THD making it a popular choice for motor drives.PWM Advantages
- High efficiency
- Low THD
- Simple control structures
PWM Disadvantages
- The high switching frequency may cause electromagnetic interference
- Not suitable for high voltage applications
- Requires additional filtering which increases the cost
Matrix Converter (MC)
Matrix converters are bidirectional static frequency converters that do not require any DC link. The MC converts AC power of one frequency and voltage into another frequency and voltage level. Matrix converters offer space saving, high efficiency, and low THD, making them popular in industrial applications.MC Advantages
- Space-saving due to the absence of a DC link
- Highly efficient due to the lack of energy storage components
- Eliminates the need for a rectifier and inverter
MC Disadvantages
- Complex control structure
- High cost of implementation
- Not suitable for high power applications
Comparison Table
| Converter Type | Advantages | Disadvantages |
|---|---|---|
| Voltage Source Converter (VSC) | Low harmonic distortion, good dynamic performance, favorable for renewable energy systems | Complex control structures, requires additional components, only suitable for low power applications |
| Current Source Converter (CSC) | High power factor, low THD, more reliable and robust | Heavy and bulky, only suitable for high power applications, less efficient compared to other static frequency converters |
| Pulse Width Modulation (PWM) | High efficiency, low THD, simple control structures | The high switching frequency may cause electromagnetic interference, not suitable for high voltage applications, requires additional filtering which increases the cost |
| Matrix Converter (MC) | Space-saving due to the absence of a DC link, highly efficient due to the lack of energy storage components, eliminates the need for a rectifier and inverter | Complex control structure, high cost of implementation, not suitable for high power applications |
Conclusion
Static frequency converters play a vital role in various applications that require the conversion of AC power frequency from one level to another. The selection of a suitable converter type depends on the specific application, power requirements, and budget constraints. All converter types have their unique advantages and disadvantages depending on the application used. In general, VSC and PWM converters are suitable for low power applications, while CSC and MC converters are suitable for high-power applications with their differing characteristics.How to Use a Static Frequency Converter: A Complete Guide
What is a Static Frequency Converter?
A Static Frequency Converter (SFC), also known as an AC-AC converter, is an electronic device that converts the frequency of alternating current (AC) power into another frequency. It is commonly used in industrial and commercial applications to operate equipment that requires a different frequency of AC power than the local power grid.Why Use a Static Frequency Converter?
The need for a static frequency converter arises when the frequency of the available AC power supply does not match the frequency required by the equipment. For example, if a machine operates on 60 Hz power, but the local grid provides 50 Hz power, a static frequency converter can be used to convert the incoming frequency to the required one.How Does a Static Frequency Converter Work?

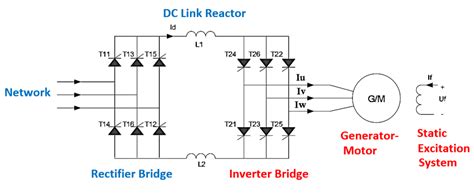

A static frequency converter consists of three main components: rectifier circuit, DC link, and inverter. The rectifier circuit converts the incoming AC power supply to DC, which is then stored in the DC link. The inverter converts the DC power back to AC power of the required frequency, which is then supplied to the equipment.Choosing the Right Static Frequency Converter
When selecting a static frequency converter, it is important to consider the input and output voltage and frequency requirements of the equipment. Other factors to consider include the power rating, efficiency, and reliability of the unit.Step-by-Step Guide to Using a Static Frequency Converter
Step 1: Identify the input and output requirements of the equipment
Before selecting and installing a static frequency converter, it is important to determine the input and output voltage and frequency requirements of the equipment.Step 2: Select the appropriate SFC
Once the equipment requirements have been determined, select a static frequency converter that matches the input and output specifications. Consider factors such as power rating, efficiency, and reliability.Step 3: Install the SFC
Follow the manufacturer's instructions to install the static frequency converter in a suitable location. Ensure that it is grounded properly and connected to the power source and equipment according to the wiring diagram provided.Step 4: Test the SFC
Once the installation is complete, test the static frequency converter to ensure that it is working as expected. Verify that the input and output voltage and frequency are within the required range, and that the equipment is functioning properly.Step 5: Monitor the SFC
Regularly monitor the static frequency converter to ensure that it is operating within the specified parameters. Check for any signs of overheating or malfunction, and address any issues immediately.Conclusion
A Static Frequency Converter is a useful device for industries and commercial establishments that require equipment to operate on a different frequency than the local power grid. By following the steps outlined in this guide, you can select and install an appropriate static frequency converter and ensure its proper operation over time.Static Frequency Converter: What is it and how does it work?
If you're someone who works with machinery and high-powered equipment, chances are you've heard of a static frequency converter. A static frequency converter, or an SFC, is a device that converts AC power from one frequency to another. It is a useful tool in a variety of industries including aviation, oil and gas, and manufacturing.
The importance of a static frequency converter lies in its ability to convert power while maintaining a consistent level of quality. This means that the device can help control the voltage and frequency of power output, preventing damage to equipment and machines. With that said, let's dive a little deeper into the workings of a static frequency converter.
How does a static frequency converter work?
A static frequency converter consists of two main components: a rectifier and an inverter. The rectifier takes in AC power from the main power supply and converts it to DC power. The inverter then takes the DC power and converts it back to AC power at the desired frequency. This process is known as PWM, or pulse width modulation.
One advantage of PWM is that it allows for precise control over the output frequency. This is especially important in applications where a specific frequency is required, such as in aviation. In addition, static frequency converters can produce very clean power output, with low harmonic distortion. This means that the output will be stable and consistent, without any unwanted fluctuations.
Why use a static frequency converter?
The primary reason to use a static frequency converter is to convert power from one frequency to another. For example, if you have a machine that requires 60Hz power input but your main power supply only provides 50 Hz power, you would need a static frequency converter to make up the difference.
Another reason to use a static frequency converter is to provide backup power. Many industries rely on continuous and uninterrupted power, and in the event of a power outage, a static frequency converter can help prevent equipment damage and downtime.
Types of static frequency converters
There are two main types of static frequency converters: rotary and solid state. Rotary frequency converters use a motor-generator set to convert power, while solid-state frequency converters use semiconductor technology. Solid state converters are becoming more popular due to their smaller size, higher efficiency and lower maintenance requirements.
Benefits of using a static frequency converter
Static frequency converters offer several benefits that make them an attractive investment for businesses and industries. For one, they allow for greater flexibility in choosing the type of equipment that is used, as equipment can be sourced from countries with different power frequency standards.
In addition, static frequency converters can save energy, as they allow for the use of high-efficiency motors in applications where they would otherwise not be suitable. Static frequency converters can also help prolong the life of equipment by preventing damage from irregular power output.
Conclusion
A static frequency converter is an essential tool for industries that rely on machinery and high-powered equipment. It offers precise and stable control over power output, prevents equipment damage, and saves energy. With advancements in technology, solid-state static frequency converters are becoming more popular due to their efficiency and small size.
Whether you’re looking to convert power from one frequency to another, or you need backup power for your facility, a static frequency converter is a valuable investment that can provide reliable and consistent power output for years to come. If you have any questions or concerns about how a static frequency converter can benefit your business, please don't hesitate to contact us at [Company Name].
Thank you for taking the time to read about static frequency converters, we hope you found this blog informative!
People Also Ask About Static Frequency Converter
What is a Static Frequency Converter?
A static frequency converter is a type of electronic device that can convert alternating current (AC) power from one frequency to another. These converters are used to convert power supply frequency in aircraft, marine vessels, and other similar applications where the primary power source does not match the required operating frequency.
How does a Static Frequency Converter work?
Static frequency converters use thyristors and other solid-state components to convert incoming AC power into a direct current (DC). The DC power is then converted into a new AC waveform at the desired frequency by using an inverter. The output waveform is synchronized to the input waveform and generated without any mechanical commutation.
What are the applications of a Static Frequency Converter?
Static frequency converters are widely used in areas where the power supplied by the grid is not compatible with the equipment being used. Some typical applications include aviation, marine, mining, and manufacturing. In aviation, these converters are used to ensure that aircraft systems receive power at the necessary voltage and frequency while on the ground and during flight. In marine vessels, they help to convert power frequency to accommodate different equipment requirements.
What are the advantages of using a Static Frequency Converter?
- Increased efficiency: Static frequency converters offer a high degree of efficiency in energy conversion, which reduces energy waste and saves on costs.
- Compact and lightweight: Compared to traditional power supply solutions, static frequency converters are compact, lightweight, and take up minimal space, saving valuable space in equipment such as aircraft and marine vessels.
- Low power distortion: Static frequency converters provide a cleaner output signal than other electrical systems, ensuring minimal electrical noise and distortion.
What are the different types of Static Frequency Converters available in the market?
There are two main types of static frequency converters: rotary and solid-state. Rotary converters use mechanical components to convert AC power into DC, which is then converted back to AC at the desired frequency. Solid-state converters utilize thyristors and other electronic components to achieve the same conversion in a more efficient and cost-effective way.
In conclusion, a static frequency converter is an electronic device that can convert AC power from one frequency to another, making it suitable for various applications. It offers numerous advantages, including increased efficiency, compactness, low power distortion, and solid-state and rotary types.People Also Ask About Static Frequency Converter
What is a static frequency converter?
A static frequency converter is an electronic device that converts the frequency of alternating current (AC) power from one frequency to another. It is commonly used in industries where different frequency requirements exist for various equipment or systems.
How does a static frequency converter work?
A static frequency converter works by using power electronics to convert the incoming AC power from one frequency to another. It typically consists of rectifiers, inverters, and other circuitry that can change the frequency while maintaining a stable output voltage. By adjusting the switching frequency of the internal components, it can generate the desired output frequency.
What are the applications of static frequency converters?
Static frequency converters have various applications across industries. Some common uses include:
- Powering aircraft ground support equipment, where different frequencies are required for various aircraft systems.
- Operating machinery and equipment imported from countries with different frequency standards.
- Testing and simulating power supply conditions for electrical equipment.
- Providing backup power during frequency variations or outages.
What are the benefits of using a static frequency converter?
Using a static frequency converter offers several advantages, including:
- Flexibility: It allows equipment designed for one frequency to be used in environments with different frequency requirements.
- Cost savings: Instead of purchasing new equipment, a frequency converter can enable the use of existing machinery in a different frequency environment.
- Efficiency: Static frequency converters typically have high conversion efficiency, minimizing power losses during the frequency conversion process.
- Reliability: They provide stable and reliable output power, ensuring smooth operation of sensitive equipment.
Are there different types of static frequency converters?
Yes, there are various types of static frequency converters available, including:
- Single-phase static frequency converters: Designed for converting single-phase AC power.
- Three-phase static frequency converters: Suitable for converting three-phase AC power.
- Motor generator sets: A combination of an electric motor and a generator that produces the desired frequency.
- Rotary frequency converters: Utilize rotating machinery to convert the frequency.
